1.Keep critical components runing and prevents data loss. 2.Provide protection of connected equipment from dangerous surges and spikes. 3.Correct extended brownouts and over voltages from 140 to 300V. 4.Provide stable output voltage within the input voltage range. |
| Model |
UPS 1000 VA |
| Output |
| Rated output power |
500W |
| Adaptability of power supply |
Input voltage (AC mode) |
140Vac-290Vac(±5Vac) |
| Output voltage (AC mode) |
190Vac-255Vac |
| Output voltage (battery mode) |
210Vac~235Vac（No load, effective value）210Vac~235Vac（No load, effective value）210Vac~235Vac（No load, effective value） |
| Output frequency (AC mode) |
The Frequency is same as AC |
| Output frequency (battery mode) |
50/60Hz±0.5Hz |
| Backup time |
≥5m / 250W |
| Efficiency of power |
Mains power mode≧90% （@220VAC±10% Fully loaded） |
| Battery mode≧70% （Load 250W）Battery mode≧70% （Load 250W）Battery mode≧70% （Load 250W） |
| Transfer time |
From DC to AC ≤ 10ms |
| From AC to DC ≤ 10ms |
| Output waveform (battery mode) |
DC mode:PWM（square wave）DC mode:PWM（square wave） |
| Protection |
| Overload |
Overload warning point |
510W±10% |
| Overload protection point |
510W±10% |
| Low voltage |
Low voltage disconnect |
142Vac±5Vac |
| Low voltage reconnect |
152Vac±5Vac |
| High voltage |
High voltage disconnect |
290Vac±5Vac |
| High voltage reconnect |
280Vac±5Vac |
| Stage 1 |
Enter stage 1 point of Regulator |
168Vac±5Vac |
| Exit stage 1 point of Regulator |
175Vac±5Vac |
| Stage 2 |
Enter stage 2 point of Regulator |
202Vac±5Vac |
| Exit stage 2 point of Regulator |
209Vac±5Vac |
| Stage 3 |
Enter stage 3point of Regulator |
252Vac±5Vac |
| Exit stage 3 point of Regulator |
246Vac±5Vac |
| Low battery |
Low battery warning point |
11V±0.4V |
| Low battery protection point |
10.2 V±0.4V |
| Synchronism/phase-shifting |
Synchronism |
| Surge/short circuit |
Protection |
| Charging voltage |
13.7V±0.2V |
| Automatic re-starts when AC recovers |
YES |
| Communication&Management |
| Communication function |
NO |
| On-load indication function |
Sound alarm prompt + indicator light prompt |
| Operation condition indication function |
Three-color LED light display |
| Indicator light |
Buzzer |
State |
| Green light stays on |
Silent |
Mains power is normal, battery is charging |
| Green light off |
Silent |
Shut down |
| Red light stays on |
Sounding every 8 seconds, with a duration of 1 second |
Battery mode is normal |
|
| Red light stays on |
Sounding every 0.5 seconds, with a duration of 0.3 seconds |
Low battery |
| Red light off |
Continuously sounding |
Shutdown protection when battery voltage is too low |
| Yellow light flashes |
Continuously sounding |
Overloaded |
| No-load cut-off function |
NO |
| Silence setup |
Yes (Quickly press the power button to switch after turning on) |
| Battery |
| Self discharge |
When the machine is off, discharging current (I) of the battery, I≤30uA |
| Battery voltage |
Lead-Acid maintenance 12V/9AH*1PCS |
| Battery charging time |
10-16hours |
| Physical |
| Product Net Weight |
4.7KG |
| Product Size |
285*95*140mm |
| Noise (1 meter horizontal distance) |
≦55dB≦55dB |
| Usage environment |
| Temperature |
Use ambient temperature 0℃～40℃；Storage ambient temperature -10℃～50℃；Use ambient temperature 0℃～40℃；Storage ambient temperature -10℃～50℃； |
| Humidity |
Use relative humidity 30%～90%；Storage relative humidity 20%～95%；Use relative humidity 30%～90%；Storage relative humidity 20%～95%； |
| Atmospheric pressure |
Use atmospheric pressure 86kPa～106kPa；Store atmospheric pressure 75kPa～120kPa； |
| Altitude |
Below 2000 meters above sea level |
| Implementation standards |
GB/T 14715－2017 General specification for uninterruptible power supplies for information technology equipment |
| |
|
|
|

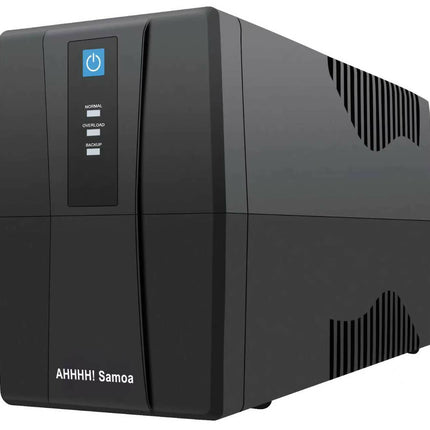

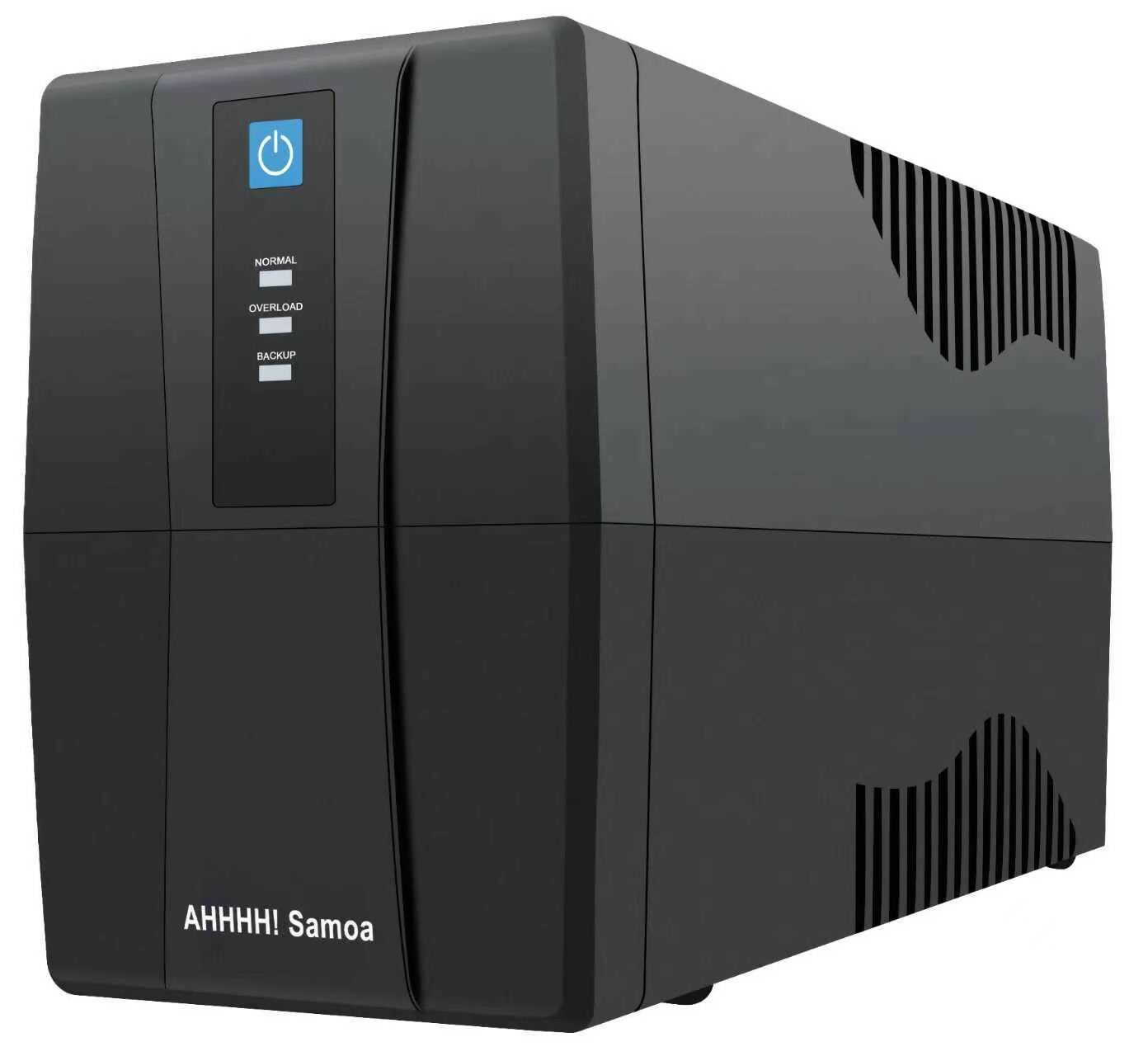

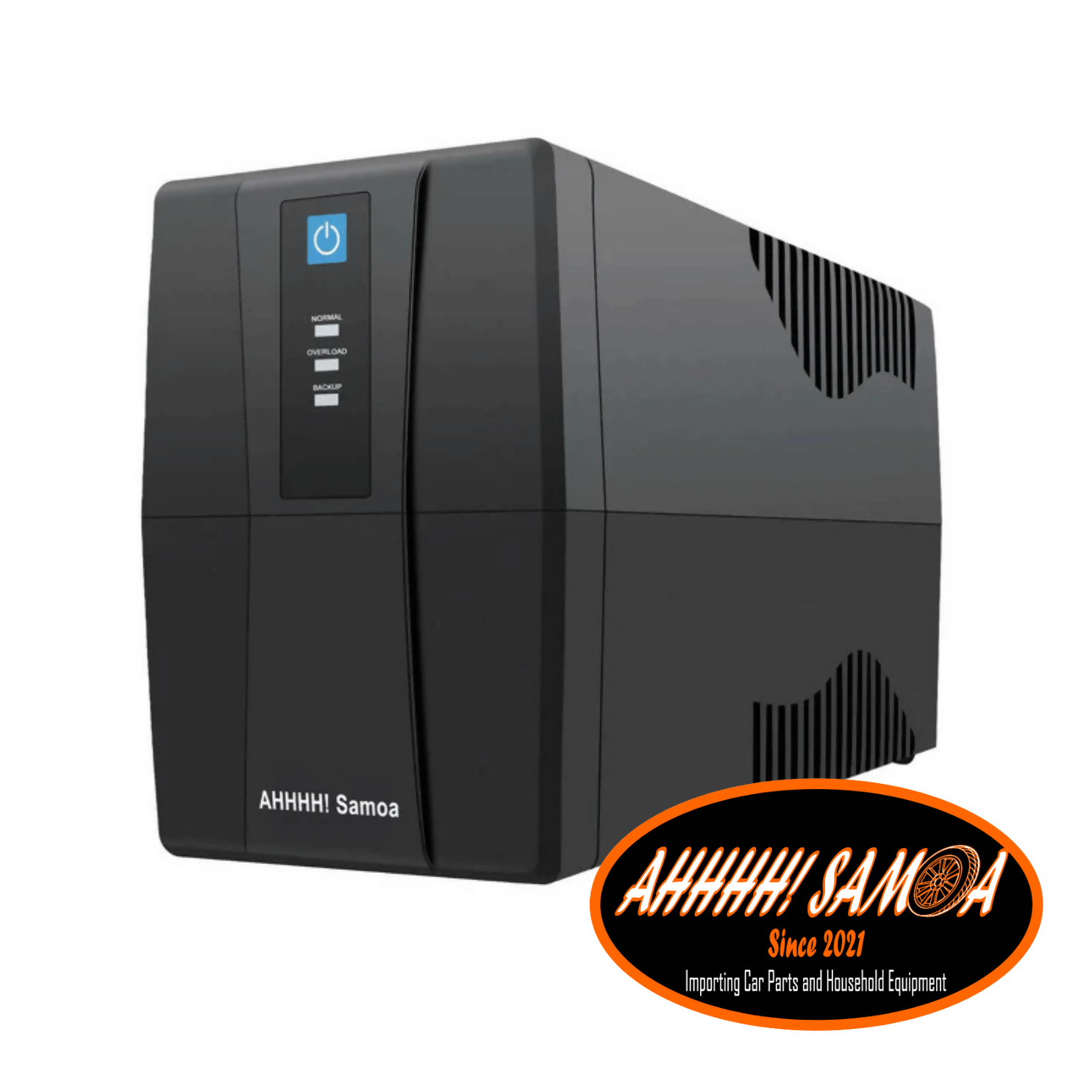

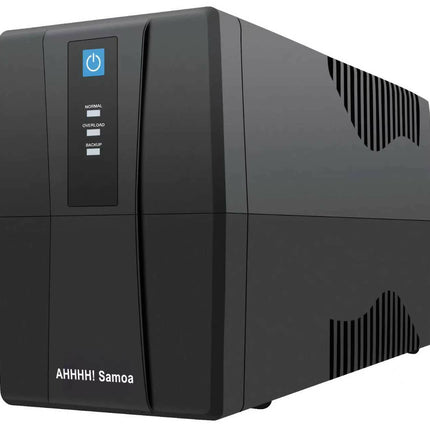

| Product Picture |
| |
| Circuit schematic |
| |
| |
|
|
|
| |
|
|
|
| CARTON APPEARANCE |
|
|
|
